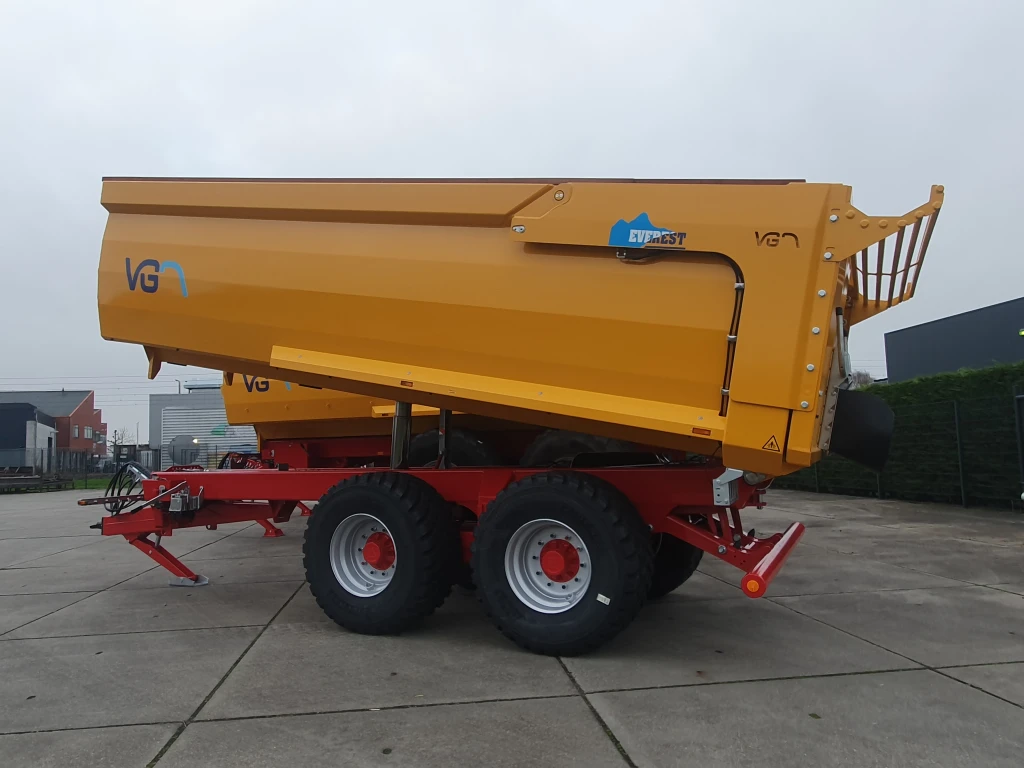

This tipper trailer is equipped with the following standard features:

• 10-Hole axles

• Hydraulic support leg, operated from the tractor

• Tapered container, for easier unloading.

• Four braked wheels.

• See-through grill in the container.

• Grain chute in the rear tailgate.

• Perimeter lighting

• Rotatable towing eye.

• Hose support on the drawbar.

• Rubber sprung drawbar.

• Rear bumper

• Bolted mudguards on the load area.

• Container dimensions: 5500 int. X 2350 int. X 1400 int.

• Grease nipples on central main axle.

• Tipper cylinder mounted in cardanic suspension.

• Track width: 1950 mm.

• Excluding wheels and tyres.

This tipper trailer can be fitted with the following options:

• Stepladder at front of container

• Tarpaulin rack on the chassis

• Tarpaulin rack on the tailgate

• Catwalk on the top front of the container with stepladder option

• Rubber outflow to grain chute

• Lengthening of operating handle for the grain chute on left and/or right side

• Hardwood protective beam attached to upper edge of container

• Plastic protective beam attached to upper edge of container

• Hydraulic jack leg with hand pump

• Double-acting rear valve with six-way tap in combination with hydraulic tailgate

• Hydraulic jack leg with six-way tap

• Air braking incl ALR

• Hydraulic-driven rear axle steering

• Silage structure 800 mm type EV14

• Silage structure 250 mm type EV14

• Work lamp inside front of container (58R)

• 1 rear work lamp

• Switch between container and chassis in combination with 1 rear work lamp

• Reversing alarm

• rear tracking plug

• LED lighting

• Plastic toolbox

• Scharmüller K80 pick-up hitch

• Scharmüller K50 steering ball

• Hydraulic folding bumper

• Central steering knuckle grease nipples

• Sprayed in company colour (max. 2 colours)

• VGM cover system type EV

• Clamps on tailgate type EV
