Agricultural tippers
Discover

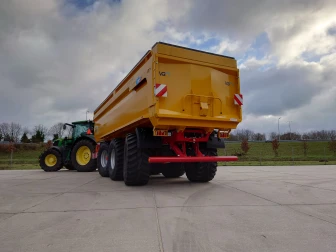

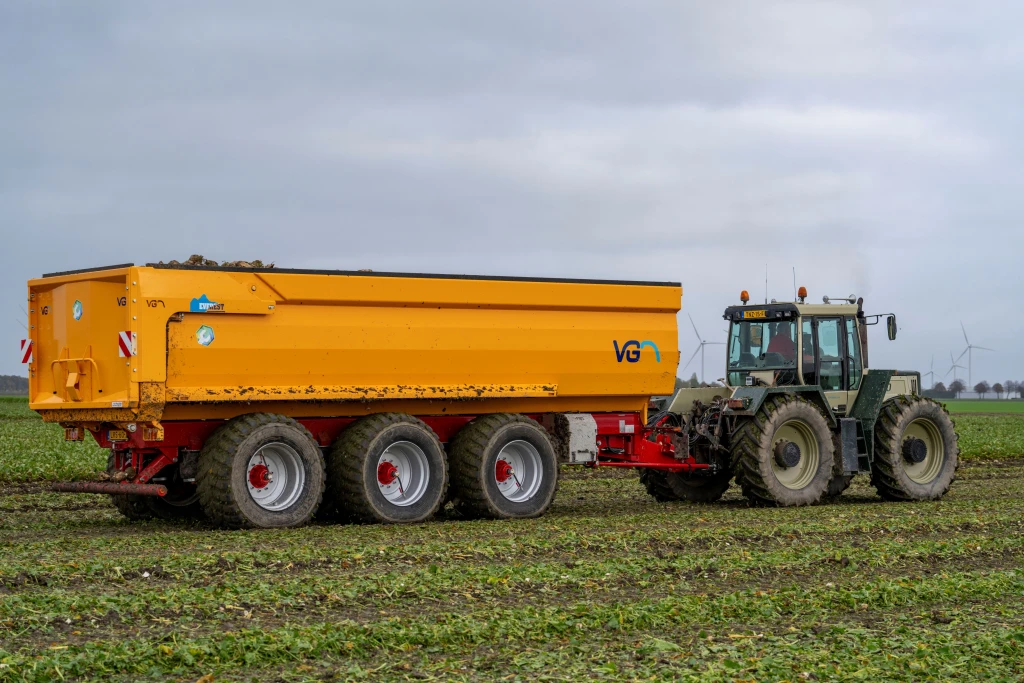

Everest 28
Everest 28 agricultural tipper trailers are known for their functionality, strong construction and durability! They prove themselves practically every day. VGM tipper trailers are distinguishable by their well thought out design, with a smooth loading bay made from high quality wear-resistant material. The tipper trailers have a high level of finish and a very comprehensive standard specification. VGM tippers are at home on the open road or on rough farmland.
Standard version
This tipper trailer is equipped with the following standard features:
- 10-Hole axles 150 mm. (410 x 180)
- Air axle suspension
- First and third axle forced steering
- Hydraulic support leg, operated from the tractor
- Tapering container, for easier unloading
- Rubber sprung drawbar
- Floor constructed from high quality wear-resistant steel
- Six braked wheels
- See-through grill in the container
- Grain chute in the tailgate
- Rotatable towing eye
- Hose support on the drawbar
- Bolted mudguards on the load area
- Container dimensions: 8500 int. X 2350 int. X 1400 int.
- Tipper cylinder mounted in cardanic suspension
- Track width: 2050 mm
- EV folding bumper
- Excluding wheels and tyres
Options
This tipper trailer can be fitted with the following options:
- Stepladder at front of container
- Tarpaulin rack on the chassis
- Tarpaulin rack on the tailgate
- Catwalk on the top front of the container with stepladder option
- Hydraulic suspension
- Rubber outflow to grain chute
- Lengthening of operating handle for the grain chute on left and/or right side
- Hardwood protective beam attached to upper edge of container
- Plastic protective beam attached to upper edge of container
- Hydraulic jack leg with hand pump
- Double-acting rear valve with six-way tap in combination with hydraulic tailgate
- Hydraulic jack leg with six-way tap
- Air braking
- Hydraulic-driven rear axle steering
- Silage structure 800 mm type EV28
- Silage structure 250 mm type EV28
- Work lamp inside front of container (58R)
- 1 rear work lamp
- Switch between container and chassis in combination with 1 rear work lamp
- Reversing alarm
- rear tracking plug
- LED lighting
- Plastic toolbox
- Scharmüller K80 pick-up hitch
- Scharmüller K50 steering ball
- Central steering knuckle grease nipples
- Sprayed in company colour (max. 2 colours)
- VGM cover system type EV28
- Clamps on tailgate type EV
- Commando steering bar with quick release
- Lifting front axle
- PTO pump with quick release valve
- EV hydraulically folding bumper
