Agricultural tippers

Discover

SK 22

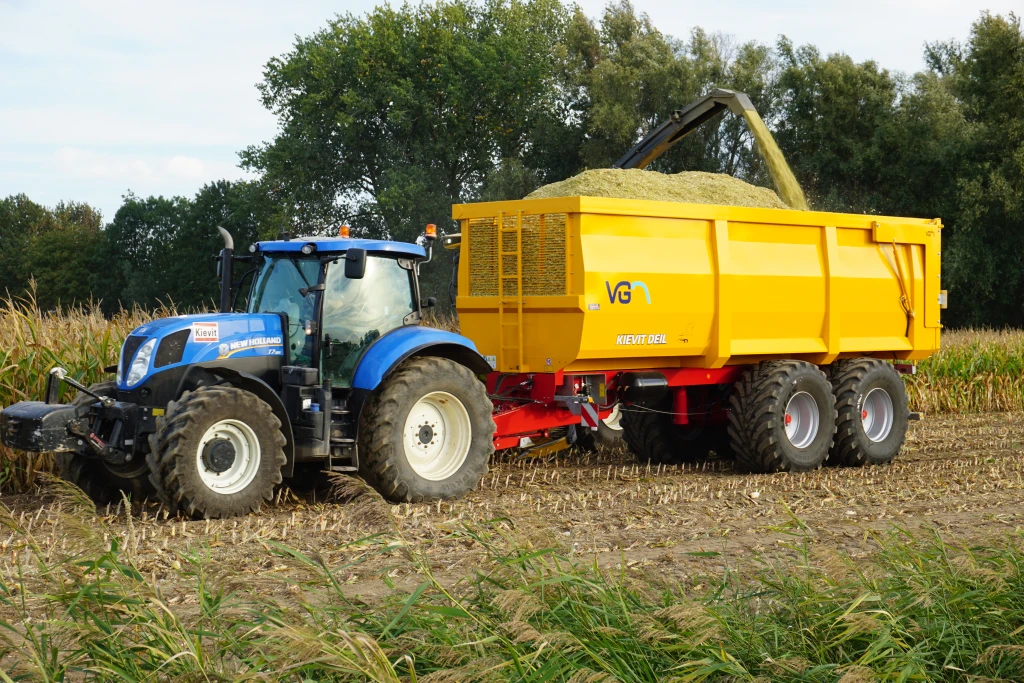

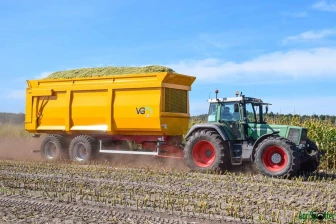

VGM’s silage tipper trailers are known for their functionality, strong construction and durability! They prove themselves practically every day. VGM tipper trailers are distinguishable by their well thought out design, with a smooth loading bay made from high quality materials. The tipper trailers have a high level of finish and a very comprehensive standard specification. VGM tippers are at home on the open road or on rough farmland. These tipper trailers can be used anywhere, thanks to their pendulum tandems and BPW axles.

VanGinkelMachines

Standard version

This tipper trailer is equipped with the following standard features:

  • 10-Hole axles 150 mm. (410 x 180)
  • Hydraulic support leg, operated from the tractor
  • Tapered container, for easier unloading.
  • Four braked wheels.
  • See-through grill in the container.
  • Grain chute in the rear tailgate.
  • Perimeter lighting
  • Rotatable towing eye.
  • Hose support on the drawbar.
  • Rubber sprung drawbar.
  • Bolted mudguards on the load area.
  • Container dimensions: 7800 int. X 2400 int. X 2100 int.
  • Grease nipples on central main axle.
  • Tipper cylinder mounted in cardanic suspension.
  • Track width: 1950 mm.
  • Excluding wheels and tyres

Options

This tipper trailer can be fitted with the following options:

  • Stepladder at front of container
  • Tarpaulin rack on the chassis
  • Hardwood protective beam attached to upper edge of container
  • Plastic protective beam attached to upper edge of container
  • Hydraulic suspension
  • Hydraulic jack leg with hand pump
  • ALR Air braking
  • Hydraulically forced rear axle steering
  • 1 rear work lamp
  • Switch between container and chassis in combination with 1 rear work lamp
  • Reversing alarm
  • rear tracking plug
  • LED lighting
  • Plastic toolbox
  • Scharmüller K80 pick-up hitch
  • Scharmüller K50 steering ball
  • Hydraulic folding SK bumper
  • Central steering knuckle grease nipples
  • Sprayed in company colour (max. 2 colours)
  • VGM cover system type SK
  • Commando steering bar with quick release"
  • Wide spread steered undercarriage 1850"
  • Structure 400 mm type SK 22
